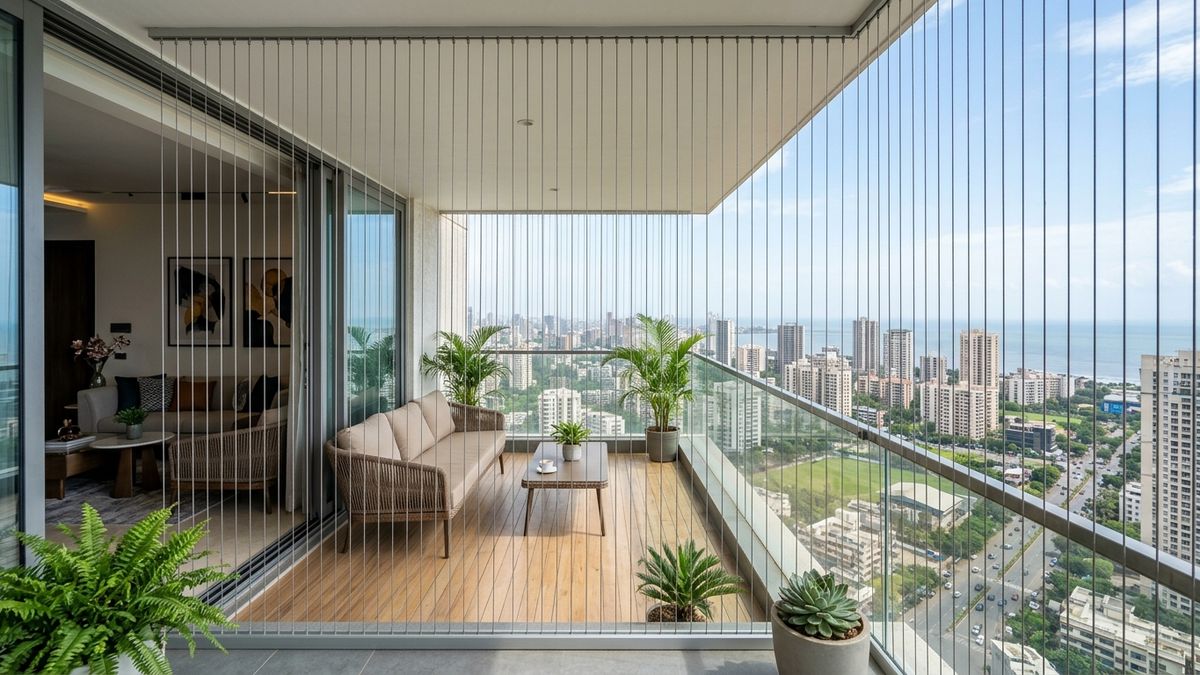

Invisible Grills Installation Process: Step-by-Step Breakdown with Stainless Steel Cables

Invisible grills have captivated modern homeowners looking for sleek, uncompromised safety. But how exactly are these ultra-thin stainless steel cables anchored so firmly that they can bear hundreds of kilograms of force without loosening?

Here is an exclusive behind-the-scenes walkthrough of how our master technicians install precision invisible grills in Hyderabad high-rises.

1. Precision Laser Alignment: Our installers mark level lines across the top and bottom of the balcony opening using optical laser levels to ensure vertical cables remain perfectly plumb.

2. Heavy Aluminum Track Anchoring: Structural-grade extruded aluminum tracks with pre-drilled cable channels are anchored into the concrete ceiling, floor, and side walls using heavy-duty stainless steel wedge anchors.

3. Continuous Cable Lacing: High-tensile 316 marine stainless steel cable (coated in clear Teflon) is laced continuously through the track rollers at precise 2-inch, 3-inch, or 4-inch intervals.

4. Calibrated Mechanical Tensioning: Each cable loop is tensioned using specialized cable pullers and locking turnbuckles until the entire grill achieves optimal tension with zero deflection.

5. Snap-On Cover Profiles: Decorative aluminum track covers snap over the mounting bolts, concealing all hardware for an ultra-sleek, minimalist aesthetic.

• Marine-grade 316 stainless steel core resistant to coastal and monsoon rust
• Teflon protective jacket prevents fraying and makes cleaning effortless
• Capable of withstanding up to 400 kg tensile impact load
• Concealed track covers deliver a seamless luxury interior finish

Transform your apartment balcony into a modern architectural masterpiece. Call Sharon Safety Nets at 9966766663 for an on-site demonstration and quotation.

A critical differentiator among invisible grill systems is the grade of stainless steel utilized in the core cables. Sharon Safety Nets installs only certified 316 marine-grade stainless steel cables comprising 49 micro-filaments (7x7 strand construction). This design delivers optimal flexibility while maintaining an extraordinary tensile breaking capacity of over 400 kg per individual cable.

The cables are coated with an optical-grade transparent nylon or Teflon sleeve. This protective jacket guards against environmental dust abrasion, prevents hand friction injuries, and stops ionic moisture penetration that could otherwise cause micro-pitting in standard 202 or 304 stainless steel.

• Core composition: 316 Marine Stainless Steel (7x7 wire rope configuration)
• Outer jacket: High-transparency UV-stabilized Teflon / Nylon 12 membrane
• Frame rails: Heavy-gauge 6063-T6 architectural extruded aluminum tracks
• Fastening hardware: High-load M8 stainless steel wedge expansion bolts
• Load rating: Certified to support up to 400 kg dynamic horizontal impact force

Cost transparency is central to how Sharon Safety Nets operates. We believe every resident in Hyderabad deserves upfront, honest estimates with no hidden charges for labor, drilling, or warranty certification.

Pricing generally depends on total square footage, height of the installation, accessibility, and hardware grade selected. Below is our transparent rate card for Hyderabad and Secunderabad:

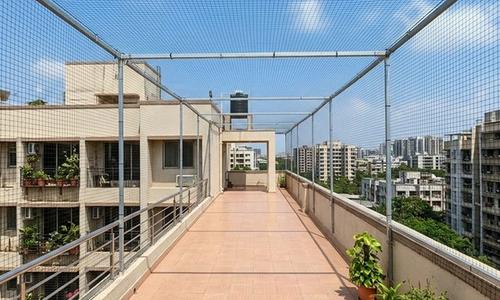

• Standard Garware Nylon Pigeon Netting: Rs 18 to Rs 25 per sq. ft. (Includes 5-Year Warranty)
• Heavy-Duty Child Safety Netting (2.0mm - 2.5mm): Rs 25 to Rs 35 per sq. ft. (Load Tested)
• 316 Marine-Grade Invisible Grills: Rs 130 to Rs 180 per sq. ft. (Full SS Track and Fitting)
• Stainless Steel Anti-Bird Spikes: Rs 120 to Rs 160 per linear foot
• Free On-Site Inspection: Rs 0 (Complimentary across all areas of Hyderabad)
• Society / Bulk RWA Discount: Up to 15% to 25% off for full tower installations

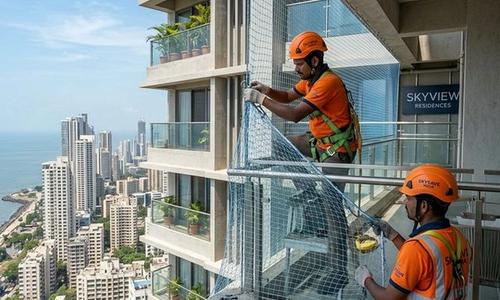

Every safety net and invisible grill installation carried out by Sharon Safety Nets follows a rigorous, standardized engineering protocol to ensure zero structural compromise and maximum longevity:

1. High-Precision Laser Survey: Technicians measure the opening with digital laser distance meters, mapping structural columns, beam levels, and any electrical conduit or plumbing obstructions.

2. Precision Dust-Controlled Drilling: Using rotary hammer drills with depth-stop gauges, anchor holes are drilled into solid reinforced concrete at uniform 6-inch to 8-inch intervals without cracking decorative plaster or tiles.

3. High-Load Anchor Insertion: High-tensile stainless steel eyelet bolts and industrial nylon plugs are inserted and torque-tightened to ensure maximum shear strength.

4. Perimeter Wire Rope & Mechanical Tensioning: A 316 stainless steel border cable is woven through every perimeter mesh opening and tensioned using turnbuckles until the net reaches drum-tight tension.

5. Physical Load Testing & Site Handover: Our lead engineer conducts multi-point pull-tests to verify anchor hold, followed by thorough vacuuming of masonry dust and issuance of the 5-Year Warranty Certificate.

Leading gated communities across Hyderabad, including prominent projects developed by My Home, Aparna Constructions, Prestige Group, PBEL, and Lodha, enforce strict Resident Welfare Association (RWA) bylaws regarding external building facade aesthetics.

Traditional bulky black iron grills or corrugated plastic sheets are strictly banned in almost all modern societies. Sharon Safety Nets specializes in 100% RWA-compliant installations. Our transparent monofilament nylon netting and sleek invisible grills maintain the architectural elegance of high-rise towers, sitting flush within balcony perimeters with zero outward overhang.

Q1: How do I clean my balcony safety net or invisible grill?
Ans: Maintenance is effortless. High-density nylon nets and Teflon-coated stainless steel cables can simply be sprayed with clean water from a garden hose or wiped with a soft damp cloth. No detergents or harsh chemicals are necessary.

Q2: Can pigeons chew through Garware nylon nets?
Ans: No. High-tenacity nylon has exceptional tensile toughness and heat-sealed knots that pigeons cannot bite or squeeze through. For environments with persistent rodents or squirrels, we recommend our wire-reinforced mesh.

Q3: How quickly can your team install nets in my apartment?
Ans: We provide same-day or 24-hour service across Hyderabad. Standard balcony installations are completed in approximately 2 hours by certified technicians with zero disruption to your household routine.

Q4: What does the 5-Year Warranty cover?
Ans: Our warranty covers all manufacturing defects, UV degradation, premature fiber snapping, and perimeter anchor loosening. If any issue arises, our technicians visit and rectify it free of charge.

Never compromise when it comes to the safety of your children, pets, and home environment. Join over 25,000 satisfied families across Hyderabad who rely on Sharon Safety Nets for dependable, certified fall protection and bird proofing.

Call our friendly customer support team directly at +91 99667 66663 or send us a WhatsApp message to book a complimentary site measurement and instant quotation today.
